FIBER OPTIC TERMINI

FIBER OPTIC TERMINI LUX-BEAM™ by AMPHENOL SOCAPEX

Active Electronics PLC is an authorised, franchised distributor and technical partner for Amphenol Socapex.

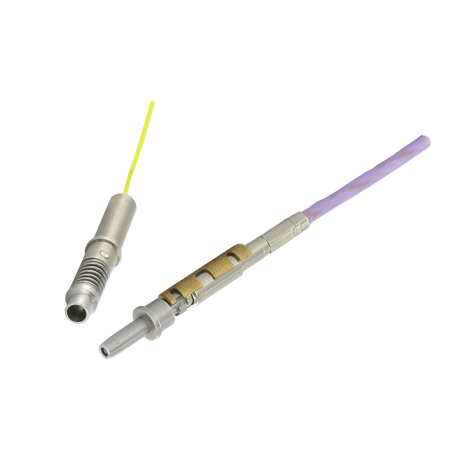

Single Expanded Beam termini EN4869

Key features

  • Single Expanded Beam Termini

  • Enables upgrades from optical physical contact technology to optical contactless technology

  • Size 12 series III for MIL-DTL-38999 / EN3645 / EN4165

Applications

  • Battlefield Communication

  • Grounded vehicles

  • Military avionics

  • Industria

Technical information

Performances :

  • Expanded Beam technology Surface expanded bundle >140X

  • Reduced sensitivity to dust No degradation of the optical face

  • Easy cleaning Low maintenance

  • Compatibility Cavity #12 MIL-DTL-38999 series III TV/CTV, EN3645 EN 4165 (SIM)

  • Accept ARINC 801 or dia. 1.25 mm optical terminial

Other benefits :

  • Easy installation and replacement as a FUSE (without optical wiring)

  • Realignment Patented, for compatibility with multisources connectors

  • Possibility to mix with Electrical contact for Hybrid solutions



Interested to know?:

What are the main differences between butt joint and expanded beam technology?

  • Butt Joint: Fiber optic butt-jointed connectors align and bring the prepared ends of two fibers in physical contact.

  • Expanded Beam: Fiber optic expanded-beam connectors use two lenses to first expand and then refocus the light from the transmitting fiber into the receiving fiber. These lenses either collimate the light emerging from the transmitting fiber, or focus the expanded beam onto the core of the receiving fiber.

 Click the link below for a detailed look.

https://www.youtube.com/shorts/9_ydMlEfhWY


If you need any assistance in selecting the right Fiber Optics interconnect solution for your requirements, please contact our Field Application Engineer liam.blacknell@active-electronics.co.uk or complete below
